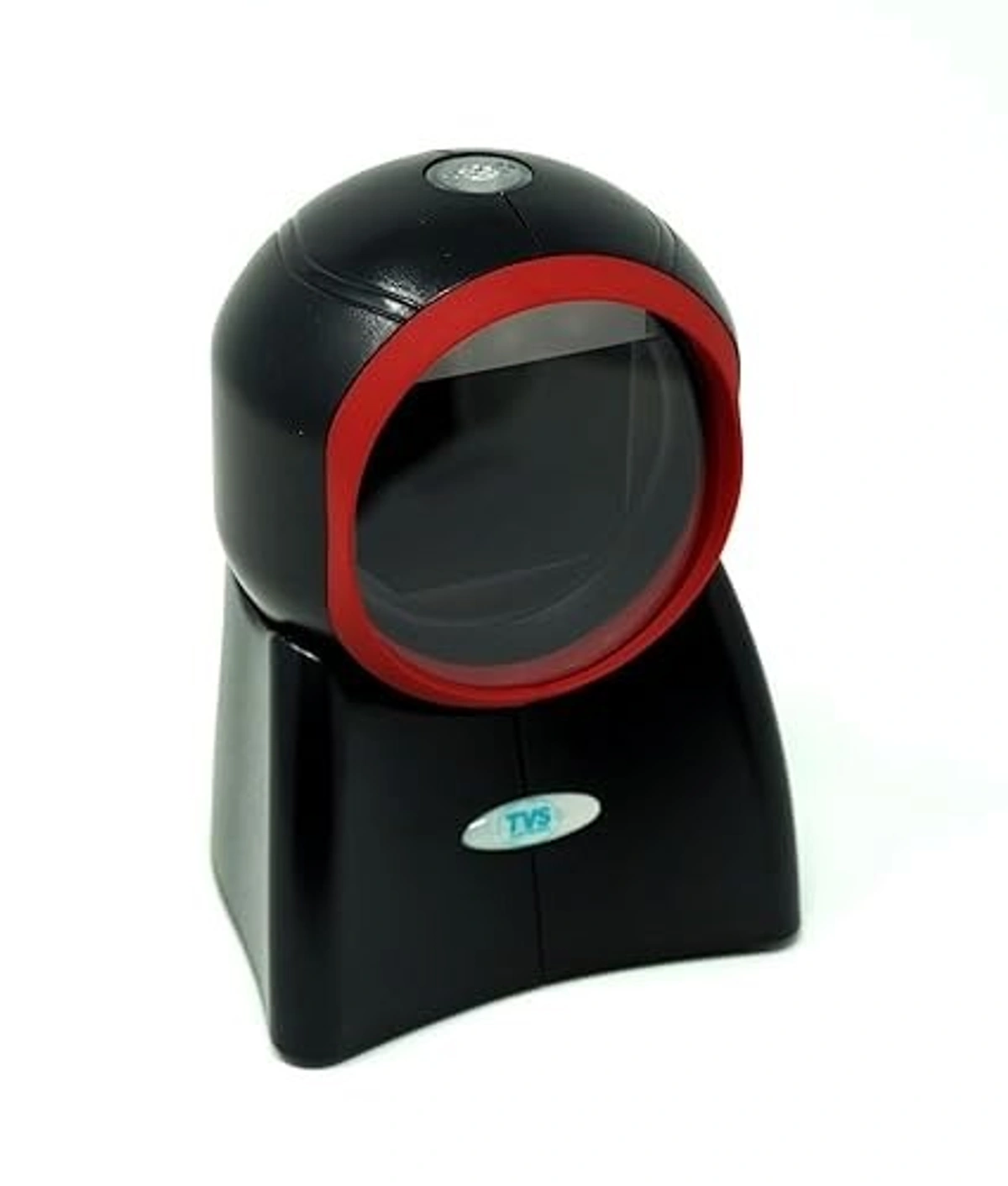

TVS 2D BARCODE SCANNER BS-i302G

Image Sensor

752*480 CMOS

1 D

EAN13
EAN8
UPCA
UPCE
ISSN
ISBN
Codabar Code 128
Code 93
ITF6
ITF14
Interleaved 2 of 5 Industrial 2 of 5
Standard 2 of 5
Matrix 2 of 5
Gs1 Databar
Code 39
Code 11
MSIPlessy
Plessy, etc.

2 D

PDF417
QR Code
Data Matrix
Chinese Sensible Code

Resolution

6.67 mil (PDF 417)
5 mil (Code 39)

Code 39

40 200mm 20mil

EAN13

5 180mm 13mil

QR Code

10 180mm 20mil

Motion Tolerance

2.5 m/s

Scan Angle

Pitch ±60* @0* Roll and 0* Skew
Roll ±360* @0* Roll and 0* Skew
Skew ±50* @0* Roll and 0* Pitch

Symbol Contrast

=25%

Interface

USB

Dimension L*W*H

83*81*128 mm

Weight

29 g

Notification

Beep
LED indicator

Operating Current

150 mA

Standby Current

120 mA

Operating Temperature

20°C ~ 50°C

Storage Temperature

-40°C – 70°C

Humidity

5% – 95% RH (non-condensing)

ESD

±14kv air discharge
±18kv direct discharge

Drop Durability

1.2m drop to concrete from six side
one drop per side

Sealing

IP 50

Accessories

USB Cable Used to connect the scanner to a host device
